• The source codes and necessary documentations are available at the repository: ( https://github.com/mdtuhinsheikh/MLSurv).
• The lecture slides are available at the https://mdtuhinsheikh.github.io/MLSurv/.

• Third year Ph.D. Student in Statistics, UConn.
• Research Interests:
  • Bayesian biostatistics
  • Modelling informative dropout process
  • Machine learning and deep learning
  • Microbiome data analysis
• Future goals:
  • Contribute to the broader field of biostatistics and statistical learning.

• Have good understanding of time-to-event data.
• Familiar with the well-known survival analysis methods.

• By the end of this lecture, the participants should have a basic understanding of
  • the use of machine learning and deep learning techniques
  • possible impacts of these techniques into the field of survival analysis

• Basics of machine learning and deep learning
• Illustration of machine learning and deep learning usinng R
• Applications of machine learning in survival analysis
• Recent developments
• Future directions

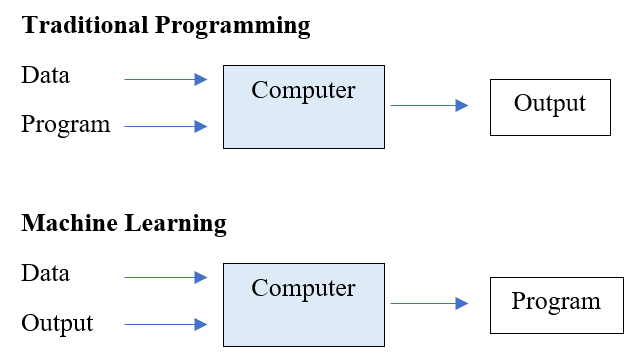

• Humans learn from past experiences, whereas, machines follow instructions given by humans.

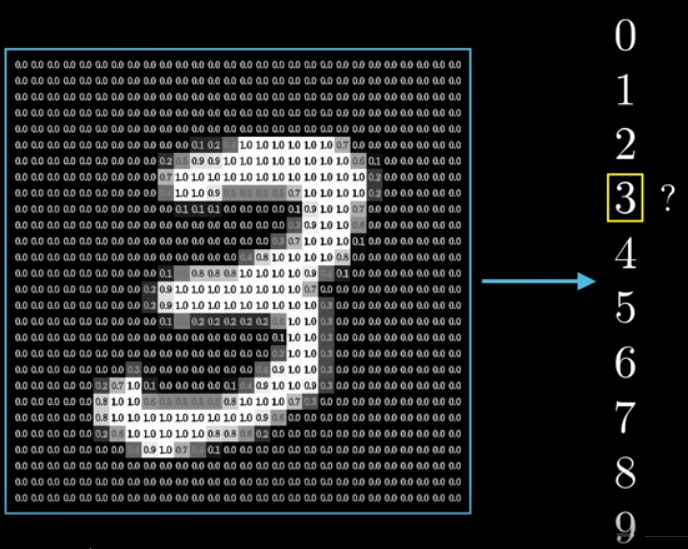

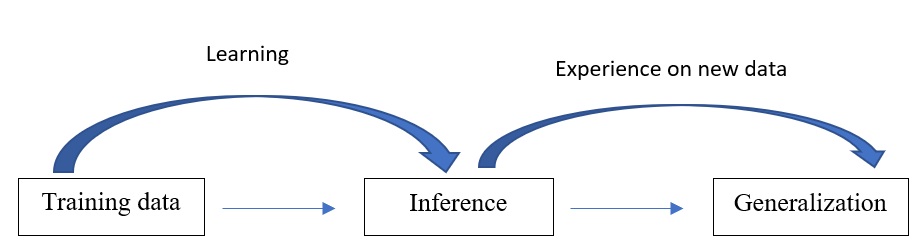

• What if human can train the machines?

• Classification trees:
  • bagging (Breiman and others 1998; Breiman 1996),
  • random forest (RF) (Breiman 2001).
• Support vector machine
• Neural network: shallow or deep neural network (DNN)
• Others

• R Packages required: randomForestSRC, ipred, MASS, Survival

data(breast, package = "randomForestSRC")
breast <- na.omit(breast)
names(breast)[1:10] # Displaying only ten variable names

##  [1] "status"             "mean_radius"        "mean_texture"
##  [4] "mean_perimeter"     "mean_area"          "mean_smoothness"
##  [7] "mean_compactness"   "mean_concavity"     "mean_concavepoints"
## [10] "mean_symmetry"

• The breast dataset is from randomForestSRC R package.
• For more details about the data: visit this link

• The goal is to classify the status using decission tree

mod1 <- rfsrc(status ~ ., data = breast, nsplit = 10)
mod2 <- bagging(status ~ ., data = breast, coob=TRUE)
res <- as.data.frame(c(mean(mod1$err.rate[, 1], na.rm = TRUE),
            mod2$err))
colnames(res) <- "Error Rate"
rownames(res) <- c("RSF", "Bagging")

• The misclassification error for the two approaches

##         Error Rate
## RSF      0.2371134
## Bagging  0.2731959

• Both are based on resampling techniques.
• Both are widely used for classification.

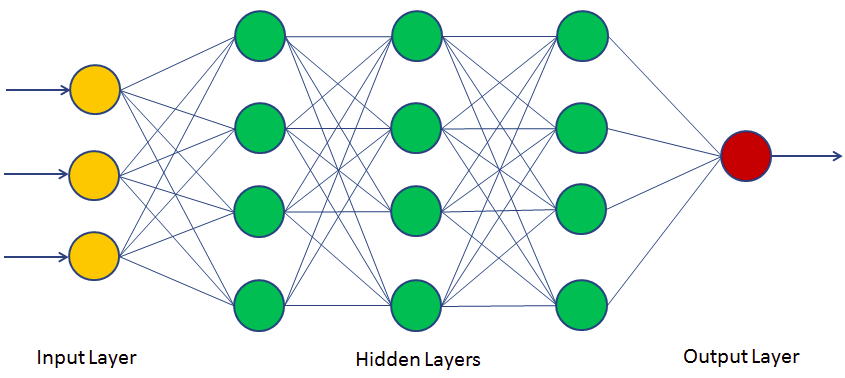

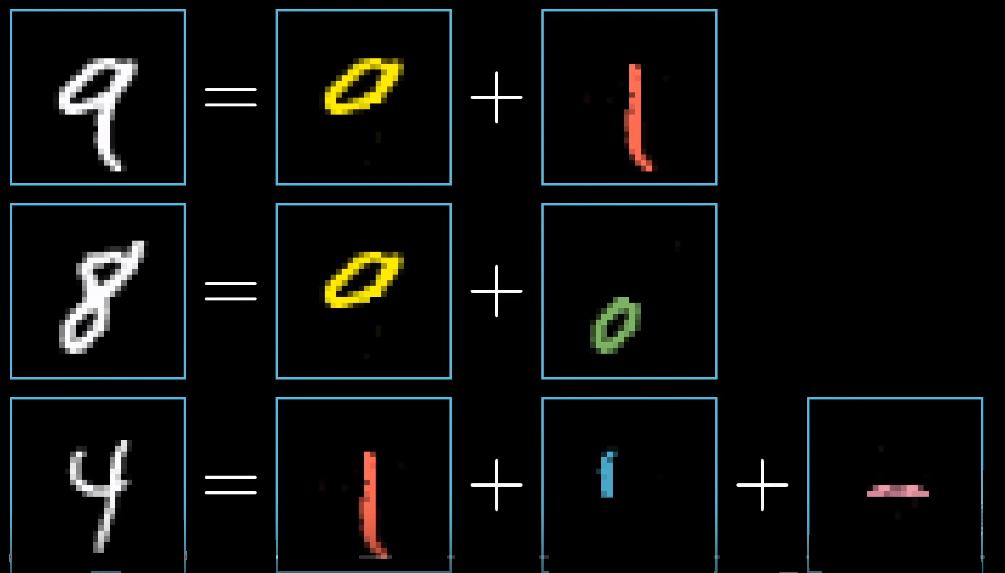

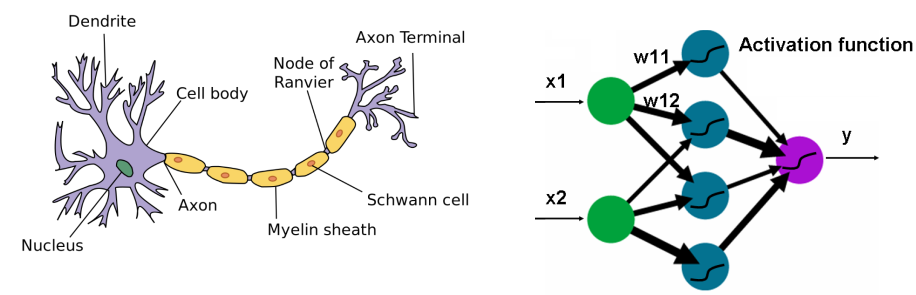

• Deep Learning is very similar to human neural system
  • It is a special kind of Machine Learning (Goodfellow, Bengio, and Courville 2016).
• Especially, useful to generalize complicated functions in high dimensional space.
• Synonymous terms:
  • deep neural network (DNN)
  • deep feed-forward networks
  • feed-forward neural networks
  • multi-layer perceptrons (MLPs).

• R Packages required: neuralnet, MASS.
• Dataset: Boston from MASS package in R.

set.seed(500)
data(Boston, package = "MASS")
names(Boston)

##  [1] "crim"    "zn"      "indus"   "chas"    "nox"     "rm"      "age"
##  [8] "dis"     "rad"     "tax"     "ptratio" "black"   "lstat"   "medv"

index <- sample(1:nrow(Boston), round(0.75*nrow(Boston)))
train <- Boston[index, ]
test <- Boston[-index, ]
lm.fit <- glm(medv~., data=train)
pr.lm <- predict(lm.fit, test)
MSE.lm <- sum((pr.lm - test$medv)^2)/nrow(test)

• For more detail of the data: ‘?Boston’
• Performing newral network model on the Boston data

maxs <- apply(Boston, 2, max)
mins <- apply(Boston, 2, min)
scaled <- as.data.frame(scale(Boston, center = mins, scale = maxs - mins))
train_ <- scaled[index, ]
test_ <- scaled[-index, ]
n <- names(train_)
f <- as.formula(paste("medv ~", paste(n[!n %in% "medv"], collapse = " + ")))
nn <- neuralnet(f, data=train_, hidden=c(5,3), linear.output=T)

pr.nn <- compute(nn,test_[,1:13])
pr.nn_ <- pr.nn$net.result*(max(Boston$medv)
          -min(Boston$medv))+min(Boston$medv)
test.r <- (test_$medv)*(max(Boston$medv)
              -min(Boston$medv))+min(Boston$medv)
MSE.nn <- sum((test.r - pr.nn_)^2)/nrow(test_)
print(paste(MSE.lm, MSE.nn))

## [1] "31.2630222372615 16.4595537665717"

• \(\color{blue}{\text{Data mining:}}\) web click data, medical records, Google search.
• \(\color{blue}{\text{Signal recognition:}}\) autonomous helicopter, handwriting recognition, voice recognition, Machine translation, Anomaly detection.
• \(\color{blue}{\text{Self customizing program:}}\) Amazon, Netflix, Bixby (Samsung), Siri (iphone).
• \(\color{blue}{\text{On survival analysis:}}\)
  • Predicting patients’ survival
  • Classifying competing risks for an event
  • Personalized treatment recommender system

• Notations: \[ \begin{align*} i &: \text{index for subject } (i=1, \ldots, n)\\ T_i^* &: \text{time for event for subject } i \\ C_i &: \text{censoring time for subject } i \\ T_i &= \min (T_i^*, C_i), \text{observed time for subject } i \\ \delta_i &= I(T_i^* \le C_i), \text{censoring indicator for subject } i\\ \mathbf{x}_i &: \text{vector of covariates for subject } i \end{align*} \]

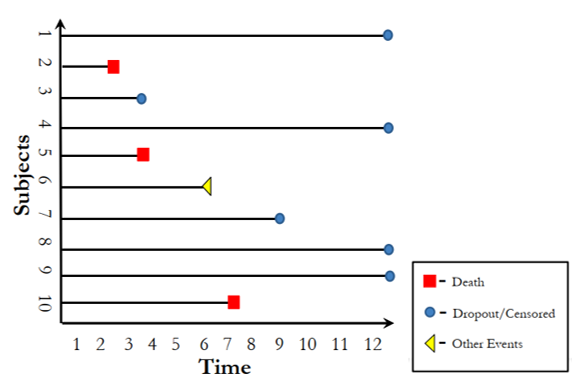

• Observed survival outcome: \(\{ (T_i, \delta_i), i=1, \ldots, n \}\).

• Analyzing patient 1, 4, 8, 9 might give us insight on which features contribute to increase the length of survival?
• Patients who survived to 12 months, what is probability that the event will occur after \(t\) time?
• A doctor might want to see what is the chance of re-hospitalizing after the patient is discharged?
• Can we predict the sub-types of the event (considering the sub-types are missing) based on learning the training data?

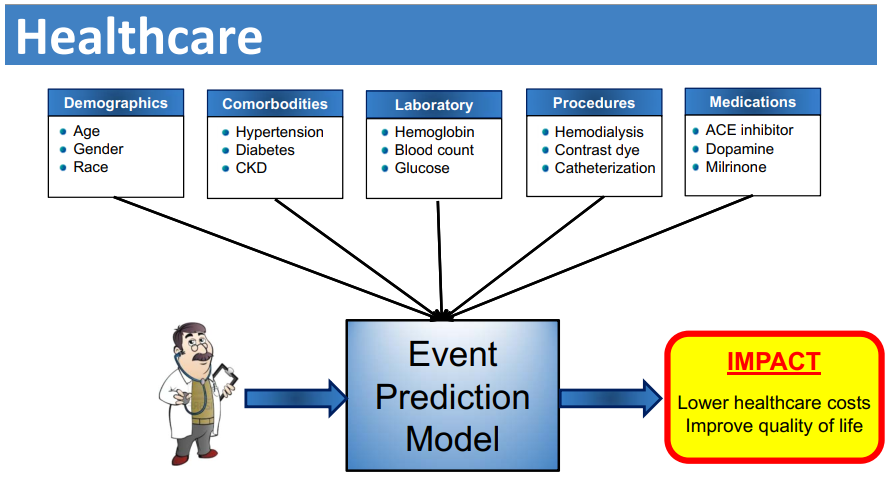

• Event of interest: Rehospitalization; Disease recurrence; Cancer survival.
• Outcome: Likelihood of hospitalization within \(t\) days of discharge.
• Figure source: Wang, Li, and Reddy (2019)

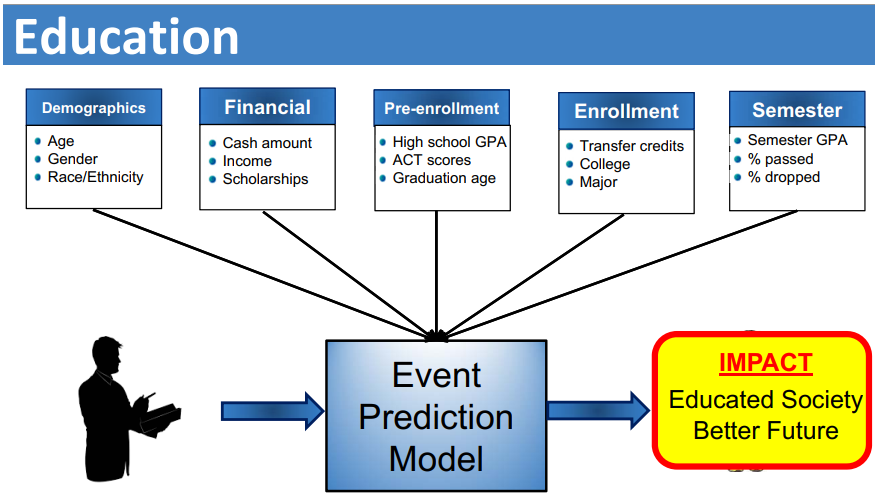

• Event of interest: Student dropout.
• Outcome: Likelihood of a student being dropout within \(t\) days.
• Figure source: Wang, Li, and Reddy (2019)

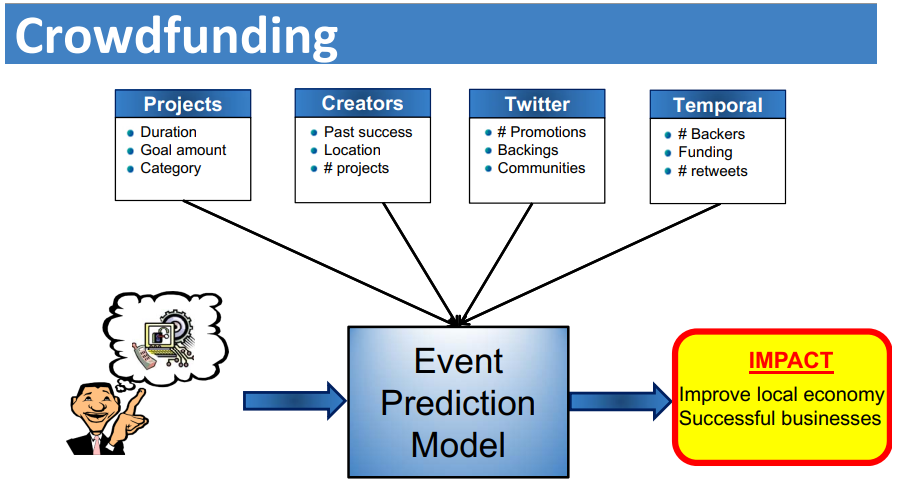

• Event of interest: Project success
• Outcome: Likelihood of a project being successful within \(t\) days.
• Figure source: Wang, Li, and Reddy (2019)

• Non-parametric: Kaplan-Meier, Nelson-Aalen, Life table
• Semi-parametric: Cox proportional hazards (PH) model
• Parametric: Accelerated failure time model

• The Cox PH model (Cox 1972) is \[ \begin{equation} h_i(t | \mathbf{x}_i) = h_0(t) \exp{(\mathbf{x}'_{i} \boldsymbol{\beta})} \end{equation} \] where, \(\mathbf{x}_i = (x_{i1}, \ldots, x_{ip})\) denotes the vector of covariates and \(\boldsymbol{\beta}\) are the corresponding regression coefficients.
• The Cox PH partial likelihood function is given by \[ \begin{equation*} pl(\boldsymbol{\beta}) = \prod_{i=1}^{D} \Big[ \dfrac{\exp(\mathbf{x}_i^T \boldsymbol{\beta})}{\sum_{j \in \mathcal{R}(T_i)} \exp(\mathbf{x}_j^T \boldsymbol{\beta})} \Big] \end{equation*} \] where, \(t_1, t_2, \ldots, t_D\) denote the ordered event times and \(\mathcal{R}(t_i)\) denotes the risk set at time \(t_i\).

• The corresponding the log partial likelihood function is \[ \begin{equation} \ell(\boldsymbol{\beta}) = \sum_{i=1}^{D} \Big( \mathbf{x}_i^T \boldsymbol{\beta} - \log \sum_{j \in \mathcal{R}(t_i)} \exp(\mathbf{x}_j^T \boldsymbol{\beta}) \Big) \end{equation} \]

• Maximizing the log partial likelihood function, we get the estimates of the model parameters.
• Evaluating the second derivative with respect to the model parameters, we calculate the information matrix.
• Standard error of the parameters are estimated by the inverse of the information matrix.

• Increasing data size
• Increasing model size
• Increasing
  • accuracy,
  • complexity, and
  • real-world impact
• The need for supervised learning

• Survival Tree: is similar to decision tree which is built by recursive splitting of tree nodes.
  • Bagging Survival Trees
  • Random Survival Forest (RF)
• Let us demonstrate one example in the following slides.

• R Packages required: randomForestSRC, ipred, MASS, Survival

data(veteran, package = "randomForestSRC")
names(veteran) # Displaying variable names

## [1] "trt"      "celltype" "time"     "status"   "karno"    "diagtime"
## [7] "age"      "prior"

• The veteran dataset is from randomForestSRC R package.
• For more details about the data: visit this link

mod3 <- coxph(Surv(time, status)~., data=veteran,x=TRUE,y=TRUE)
mod4 <- rfsrc(Surv(time, status) ~ ., data = veteran, ntree = 100)
cindex <- as.data.frame(c(concordance(mod3)$concordance,
            1-mean(mod4$err.rate, na.rm=T)))
colnames(cindex) <- "C-index"
rownames(cindex) <- c("Cox PH", "RSF")

• The C-index for the two models

##          C-index
## Cox PH 0.7053612
## RSF    0.7094312

• The RSF:
  • is advantageous for classification.
  • For example, a new patient with ‘status’ unknown,
  • However, RSF cannot predict time-to-event and perform regression analysis.
• The Cox PH model:
  • is preferred to predict time-to-event and perform regression analysis.
  • the proportionality assumption and linearity of the log-risk function might not be appropriate in complex data structure.

• DNN: use deep hidden layers to extract the output based on the features.
  • Bayesian DNN (Polson, Sokolov, and others 2017; Ranganath et al. 2016)
• \(\color{red}{\text{Note:}}\)
  • could be useful for both classification and regression
  • robust to the violation of the proportionality assumption

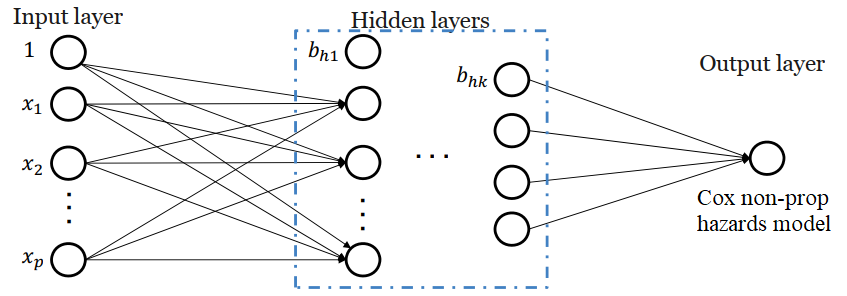

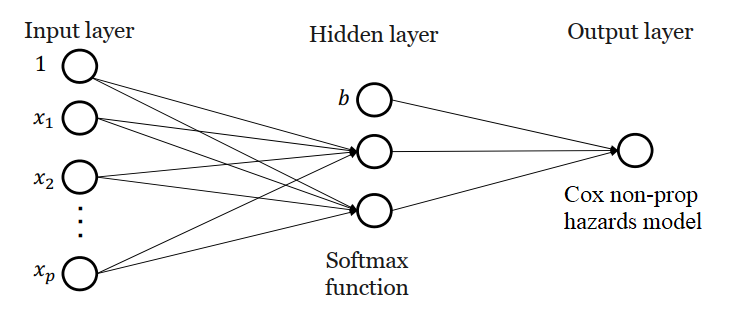

• Feed-forward non-linear proportional hazards model (Faraggi and Simon 1995).
  • Extended the linearity assumption of log-risk with the linear combination of the covariates to non-linear relationship.
  • In particular, used logit function with some hyper-parameters.
• Bayesian version of Feed-forward non-linear proportional hazards model (Faraggi et al. 1997).
  • This model considered normal prior for the parameters and derived the posterior distribution of the parameters.

• The \(\exp(\mathbf{x}'_{i} \boldsymbol{\beta})\) function in Cox PH model is replaced by a more general function \(\color{red}{g_{\boldsymbol{\theta}}(\mathbf{x})}\) to accommodate non-linear relationship \[ \begin{equation} h_i(t | \mathbf{x}_i) = h_0(t) \exp{(\color{red}{g_{\boldsymbol{\theta}}(\mathbf{x})})} \end{equation} \]
• The likelihood function \[ \begin{equation*} pl(\boldsymbol{\theta}) = \prod_{i=1}^{D} \Big[ \dfrac{\exp(\color{red}{g_{\boldsymbol{\theta}}(\mathbf{x}_i)})}{\sum_{j \in \mathcal{R}(T_i)} \exp(\color{red}{g_{\boldsymbol{\theta}}(\mathbf{x}_i)})} \Big] \end{equation*} \]

• The following loss function is optimized \[ \begin{equation} -\dfrac{1}{N_{\delta=1}} \sum_{i=1}^{D} \Big( g_{\boldsymbol{\theta}}(\mathbf{x}_i) - \log \sum_{j \in \mathcal{R}(t_i)} \exp(g_{\boldsymbol{\theta}}(\mathbf{x}_i)) \Big) + \lambda ||\boldsymbol{\theta}||^2_2 \label{loss} \end{equation} \] where, \(N_{\delta=1}\) is the number of patients with an observable event and \(\lambda\) is the \(\ell_2\) regularization parameter.

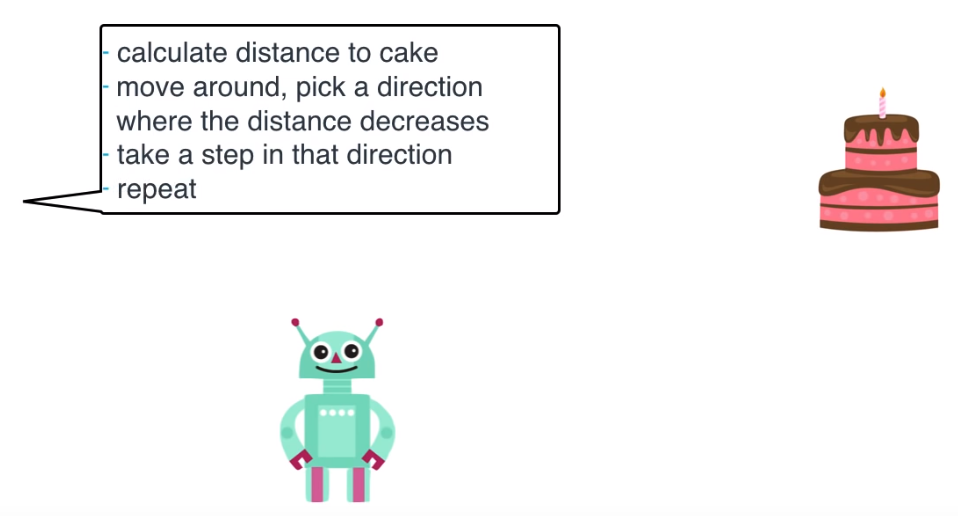

• Gradient descent optimization is used to minimize the loss..

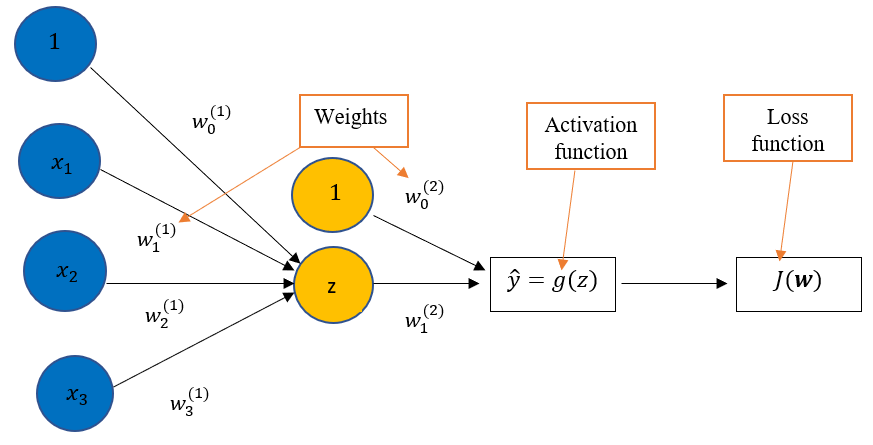

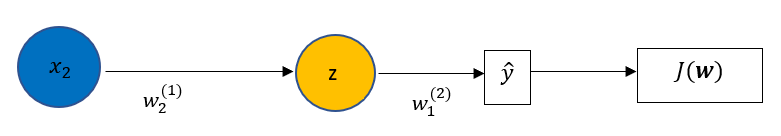

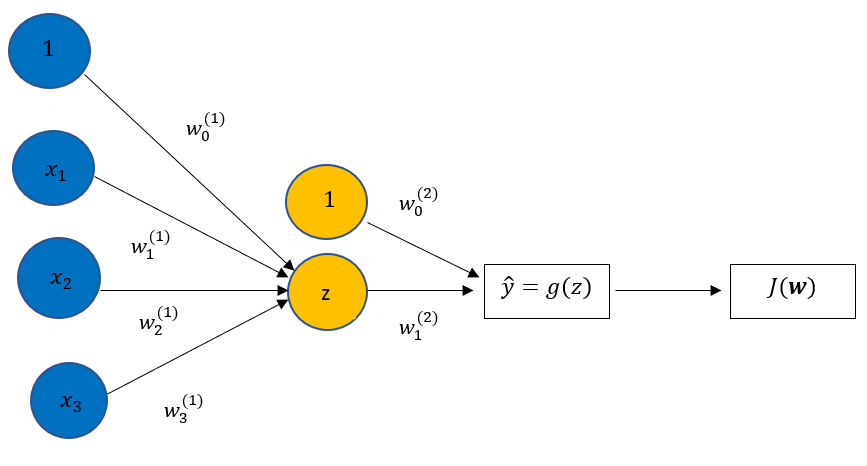

• How does a small change in one weight (e.g. \(w^{(2)}_1\)) affect the final loss \(J(\mathbf{w})\))? \[ \begin{equation*} \dfrac{\partial J}{\partial w^{(2)}_1} = \dfrac{\partial J}{\partial \hat{y}} \dfrac{\partial \hat{y}}{\partial w^{(2)}_1} \end{equation*} \]
• How does a small change in one weight (e.g. \(w^{(1)}_1\)) affect the final loss \(J(\mathbf{w})\))? \[ \begin{equation*} \dfrac{\partial J}{\partial w^{(1)}_1} = \dfrac{\partial J}{\partial \hat{y}} \dfrac{\partial \hat{y}}{\partial z} \dfrac{\partial z}{\partial w^{(1)}_1} \end{equation*} \]

• Initialize weights randomly \(\sim N(0, \sigma^2)\)
• Loop until convergence
  • Compute gradient, \(\dfrac{\partial J(\mathbf{w})}{\partial \mathbf{w}}\)
  • Update weights, \(\mathbf{w}^{(t+1)} \leftarrow \mathbf{w}^{(t)} - \eta \dfrac{\partial J(\mathbf{w})}{\partial \mathbf{w}}\), where \(\eta\) is called the learning rate.
• Return weights.

• Evaluation Metric: Concordance (C) Index
• It is a rank order statistic for predictions against true outcomes.
• The index is calculated as the ratio of the concordant pairs to the total comparable pairs.
• Given the comparable instance pair \((i, j)\), with \(t_i\) and \(t_j\) are the actual observed times and \(S(t_i)\) and \(S(t_j)\) are the predicted survival times,
  • The pair \((i, j)\) is concordant if \(t_i > t_j\) and \(S(t_i) > S(t_j)\).
  • The pair \((i, j)\) is discordant if \(t_i > t_j\) and \(S(t_i) < S(t_j)\).
• The concordance probability \(=Pr(\hat{T}_i < \hat{T}_j | T_i < T_j)\) measures the concordance between the rankings of actual values and predicted values.

• SurvELM:SurvELM: An R package for high dimensional survival analysis with extreme learning machine (Wang and Zhou 2018)
  • comes with an interactive shiny app: link.
• DeepHit: A deep learning approach to survival analysis with competing risks (Lee et al. 2018).
  • can be applied in presence of competing risks data
• Cox-nnet: an artificial neural network method for prognosis prediction of high-throughput omics data (Ching, Zhu, and Garmire 2018).
• RNN-SURV: A deep recurrent model for survival analysis (Giunchiglia, Nemchenko, and Schaar 2018)

• Testing the effect of a covariate on the response.
• Backpropagation method is computationally challenging.

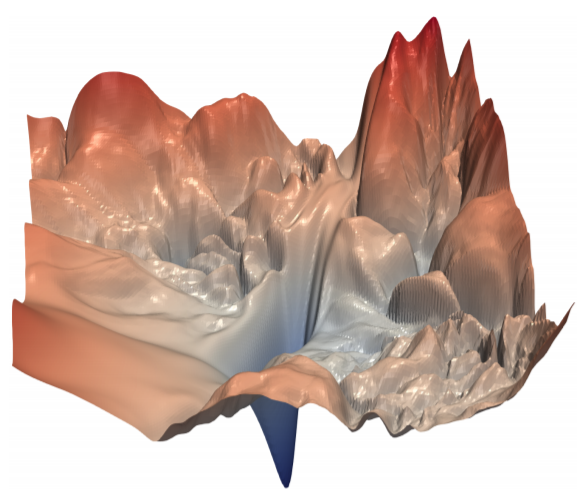

• Non-convexity of optimizer results in convergence problem.
• How to choose the learning rate: \(\color{blue}{\text{fixed}}\) or \(\color{blue}{\text{adaptive}}\)?
• Which method of optimization to be used: \(\color{blue}{\text{gradient descent}}\), \(\color{blue}{\text{stochastic gradient descent}}\), or others?
• How to handle overfitting: \(\color{blue}{\text{dropout method}}\), \(\color{blue}{\text{early stopping}}\)?
• The design of hidden units.
• The design of the architecture: how many units it should have and how they should be connected.
• The distribution of hyperparameters.
• Most of the newly developed techniques are not consistent!

• Professor Ming-Hui Chen, Statistics, UConn.
• STAT 5645 (Fall 2019) class audience.

• Hastie, T., Tibshirani, R., Friedman, J., & Franklin, J. (2005). The elements of statistical learning: data mining, inference and prediction. The Mathematical Intelligencer, 27(2), 83-85.
• For baggin decision tree: https://www.youtube.com/watch?v=2Mg8QD0F1dQ
• For random forest decision tree: https://www.youtube.com/watch?v=J4Wdy0Wc_xQ

• Good luck with survival analysis.
• Feel free to contact for further queries: mdtuhin.sheikh@uconn.edu.
